Stator Rotor core stamping Machine Motor asselmbly Hydraulic Press machine Y32-160T
new type servo press machine,electic press, press machine,bending machine

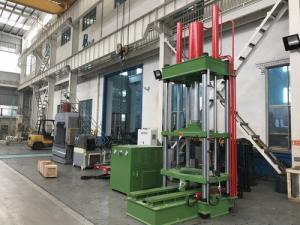

motor staoor core press machine Product Description
this series of motr stator core buckle machine for four column structure,mainly is suitable for the Y
series 80-315 series motor sttor automatically tight overlying,buckle and ruffled edge.
Introduction
The Hydraulic press has three-beam and four-pole structure, which means
economical and practical. Operation space is wide, and the movable bolster
could be moved out of frame to set the die. The structure is simple and the
appliance is also beautiful. Hydraulic control adopts plug-in valve system,
which means reliable motion and long service life. The press,, which could
realize three-operation mode: adjustment, manual and semi-automatic.
The machine is applicable for metal sheet stretching and pulling, stretching,
punching, bending. It is also used for pulling, stretching and pressing
large-scale products. Presses offer fast, easy, and safe setup and operation
as well as years of trouble-free service.
Hydrulic Press Machine paramter
| Model | 100 | 200 | 300 | 400 |
| Nominal pressure(KN) | 100 | 2000 | 3000 | 4000 |
| Return pressure(KN) | 180 | 250 | 250 | 510 |
| Ejector pressure(KN) | 200 | 400 | 400 | 800 |
| Size of table | 640X550 | 700X650 | 700X6501 | 850X850 |
| Stroke of cylinder | 400 | 450 | 450 | 450 |
| The stroke of the ejector | 240 | 240 | 240 | 300 |
| Max. distance between the slider and table | 600 | 650 | 650 | 850 |
| speed | Fast down | 180 | 180 | 180 | 200 |
|
slow down | 10-25 | 8-18 | 8-18 | 10-20 |
|
return | 140 | 140 | 140 | 140 |
| Motor power | 5.5 | 11 | 18.5 | 22 |
Product Characteristics
It applies liquid-filling quick-action technology that doubles operation efficiency.
Three big beams apply integrated structure that guarantee the equipment quality and operation lifetime.
Two electrical control systems, that is, relay or PLC, can be selected for convenient operation of customers.
Stator press machine specification:
| Model | 400 | 630 | 1000 | 2000 |
| Nominal pressure(KN) | 40T | 63T | 100T | 200T |
| Pressing stroke of cylinder | 400 | 280 | 500 | 750 |
| Stroke of buckle cylinder | 300 | 460 | 820 | 1000 |
| Stroke of expanding cylinder | 30 | 30 | 40 | 50 |
| Max. open height | 650 | 530 | 900 | 1200 |
| Height from the bench to the floor | 710 | 710 | 710 | 810 |
| overall size | 3200X1380X600 | 3600X1580x800 | 3800X1800X1000 | 4000X1800X1200 |
| weight | 3200 | 5000 | 7500 | 8600 |
hydraulic press Structure
Equips with cartridge valve integrated unit
Adopts the independent electrical control system
Stroke and pressure can be adjusted within specified scope
Cutting dampening system (optional)
Moving Table (optional)
Light curtain safety device (optional)
Oil cooling device (optional)
Industrial touching screen monitor (optional)
Quick die clamping device (optional)
Upper ejector (optional)
Floating guide-way and rolling bracket for die exchange (optional)

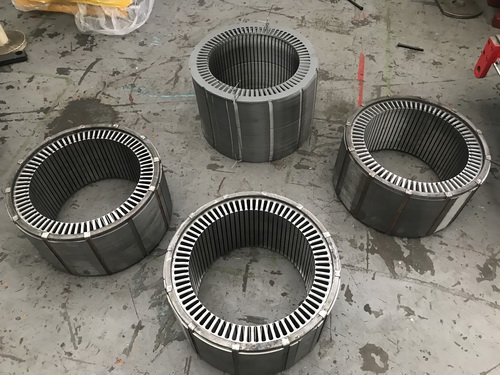

motor stator stamping sample
